Duotemp

The combination of two indicators.
Giovatemp controls excessive heat and Dometemp control excessive cold.
This indicator has the feature to report the temperatures rising and falling.
The indicator shows the excess of temperature along with the accumulation of the exceeded time.
All type of anomalies are indicated immediately and irreversibly.

Highlights
  • Choice of high and low temperatures.
  • Control of a temperature range (example vaccines: + 2 ° C to + 8 ° C).
  • Manual activation.
  • Storage without special conditions.

Time-Temperature Indicator (heat & freeze)

Available Temperatures Lower Limits High Limits
0°C, 2°C,5°C,15°C 2/3°C, 4°C, 5/6°C, 8°C , 11/12°C, 19/20°C, 25°C,30°C

Standard models

References Temperature range
Duotemp +2/8°C If temperature out of the range  > +2/8°C
Duotemp +0/8°C If temperature out of the range  > +0/8°C
Duotemp +15/25°C If temperature out of the range  > +15/25°C
Duotemp +0/30°C If temperature out of the range  > +0/30°C

Technical characteristics of DUOTEMP
Model According to your needs
Dimension
L x W x H mm
90x32x20 mm

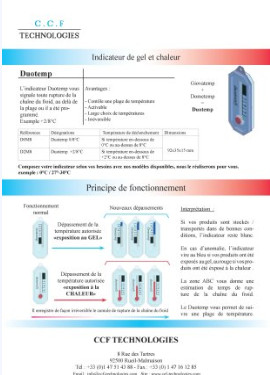

Documentation PDF
